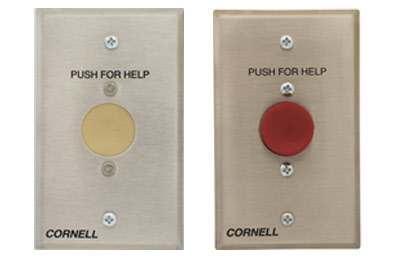

The P-116 stations feature satin finished stainless steel faceplates with silk-screened designations. The UL Listed switch is rated at 15 amperes @ 125 volts AC. Momentary action switch can be wired for NORMALLY OPEN or NORMALLY CLOSED function. Three female SLIP-ON connectors are provided.
A call is placed by pressing the momentary button. Calls must be reset remotely. The P-116 has a protruding red nurse call button.
The satin finish stainless steel faceplate with silk-screened designations may be flush mounted on a standard outlet box with single-gang plaster ring, or surface mounted on a Wiremold 5748 or equivalent. Field wiring terminations are with screw clamps, maximum 16 gauge.
The contractor shall furnish and install the CORNELL P-116 panic station as indicated on the plans. Faceplates shall be satin-finish stainless steel with silk-screened designations. Stations shall be mounted on standard outlet boxes with single-gang rings (minimum depth of 1¾ or Wiremold 5748 or equivalent).
- Power Requirements: 24VDC
- Operating Environment: 50-120°F Indoor Non-condensing
- Physical Faceplate Dimensions: 4 ½ ”H x 2 ¾ ”W (Standard 1 Gang)
- Mounting: Single-Gang back box with 1¾” minimum depth
- Wiring: #22 AWG Minimum, #16 AWG Maximum
ATTENTION: P-106 has been discontinued. Please use P-120.
