LS-201

Corridor Lights with Tone

Product ID: LS-201
Product SKU: LS-201
$52.00 $41.60/each (Online Price)
Quantity:

System Quote

Nurse Call or Corridor Light with Tone

A highly reliable alert with visual and audible signaling is utilized in critical emergency situations when residents of your facility signal for assistance.  The light and tone will continue until the station is reset. The nurse call lights are available with 1 to 3 lamps depending on your facility’s preference and needs. Light filters are available in multiple colors and the tone is available in multiple pulse frequencies to provide you with many light and sound combinations for a variety of situations. Light dome covers are removable for easy replacement of burnt out lamps. With an effective combination of light and sound, our nurse call lights with tone are an excellent addition to your emergency communication system.

Description:

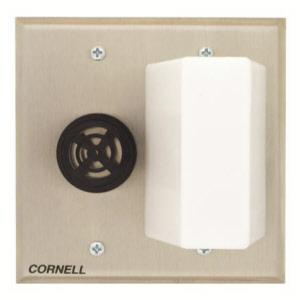

The LS-201, call indicator, is mounted on a double gang, stainless steel plate. The call indicator may be mounted in any position. The dome cover is illuminated by an incandescent lamp (can be configured in 1-3 lamps). The audible tone sounder is a piezoelectric type, black plastic.

Operation:

When an associated call station is activated, the LS-201 lights and will sound the piezoelectric tone device. The tone will pulse constantly until the station is reset.

Maintenance:

Dome covers are easily removed from the front for simplified lamp replacement.

Options:

Corridor lights can be made in 1-3 light configurations with white or red domes. Lights can be made red, blue, amber, yellow, or green with additional filters. Domes can also be silk-screened. Tone can be steady, intermittent, or chime.

Mounting:

All models mount on standard, double-gang boxes or plaster rings, with a required depth of 1 inch.

Engineering Specifications:

The contractor shall furnish and install the CORNELL LS-201 call indicator corridor lights as indicated on the plans. Faceplates shall be double gang, stainless steel with four mounting screws. Calls shall be indicated by an incandescent lamp covered by a white (or red) translucent plastic cover and a piezoelectric tone device mounted to the side on the finished plate. The sound output shall be 90 db. with 24 VDC input. The complete unit shall consume no more than 115 mA @ 24 VDC.

Technical Information:

  • Power Requirements: 24 VDC
  • Operating Environment: 50-120°F Indoor Non-condensing
  • Physical Faceplate Dimensions: 4.5 ”H x 4.57 ”W (2 Gang)
  • Mounting: Double-Gang back box with 1” minimum depth
  • Wiring: #22 AWG Minimum
Contact the nurse call system manufacturers at Cornell Communications to learn more about our superior emergency communication products.

Visual Nurse Call Systems for Healthcare Facilities

The LS-201 is a corridor light notification system for healthcare facilities. This nurse call system is mounted on a double-gang plate and has one lamp lit by an incandescent light. These corridor lights are available with white or red domes. With additional filters, the corridor lights can be made blue, amber, yellow, or green. Steady white lights are used to signal when a patient needs help and flashing red lights are used to signal emergencies.

The audible tone sounder is made of black plastic and is a piezoelectric type sounder. When the nurse call system is activated, the light illuminates and the tone device will pulse constantly with 90 decibels of sound output until staff has reset the bedside station. The light notification system tone options include steady, intermittent, or chiming sounds. These nurse call systems have easily removable dome covers to make lamp replacement fast and stress-free.

Shop all nurse call system replacement parts for sale at Cornell Communications.

visualNurse/LS-201gangbox.jpg

visualNurse/LS-201schematic.jpg
