Remote Monitor Panel

Remote Monitor Panel

Product ID: A-1700
Product SKU: A-1700
Call for pricing
(1-800-558-8957)

System Quote

Description:

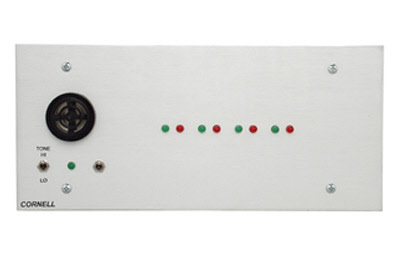

Remote Control Panel (A-1700 Series) consists of anodized aluminum face plate, surface-, flush- or desktop-mountable. Steady green LEDs indicate unarmed status; steady red, armed status; flashing red with intermittent tone, an alarm condition. Zones are designated via plastic-covered designation strips.

Operation:

Used with the CORNELL Series A-1000 Door Monitor Systems, A-1700 panels with integral LEDs permit remote monitoring of individual zones within the system.

Mounting:

Tone volume is adjustable via high-low switch.

Engineering Specifications:

The contractor shall furnish and install CORNELL A-1700 Remote Monitor Panels as shown on the plans for use with series A-1000 Door Monitor System. Each (flush-) (surface-) (desktop-) mountable panel shall accommodate zone circuits. Indicators shall be LEDs; incandescent lamps are not acceptable. Steady green LED shall indicate unarmed status; steady red, armed status; flashing red with intermittent tone, and alarm condition. Zones shall be designated with plastic-covered designation strips. Power shall be derived from the A-1000 master panel at 12 volts DC, regulated. Each remote zone indication requires 17mA.

Technical Information:

  • Power Requirements: 12VDC
  • Operating Environment: 50-120°F Indoor Non-condensing
  • Mounting: Surface, Flush, or Desktop
  • Wiring: #22 AWG Minimum

Get Help with System Design/Installation

Download Brochure & Wiring Diagram
