Call System Annunciator Easy Label Series from 4 to 48 Zones
Get Help with System Design/Installation
Download Brochure & Wiring Diagram

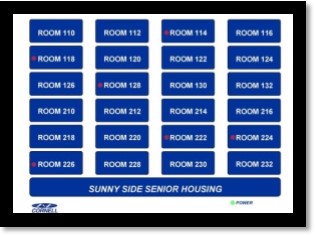

A-4448-1 Visual Nurse Call Annunciator Panel Description:
Cornell’s A-4448-1 Series Annunciator panels allow at a glance indication of patient/room/station status.
Options:
Cornell’s A-4448-1 Series Annunciator panels are very customizable:
- Ability to display 4, 8, 12, 16, 24, or 48 rooms/zones with red LEDs as needed
- Custom LED colors available call for a quote
- Room labels are customizable with included NEW 4400 Easy Label Template Editor software
- Adjustable Tone Volume on the back of the panel
Operation:
When used with a Cornell system, panel permits monitoring of individual zones.
Mounting:
Panel mounted on narrow depth surface mountable frame. Mounting kit included.
Engineering Specifications:
The contractor shall furnish and install the Cornell A-4448-1 Series Annunciator Panels as shown on the plans. Each narrow depth surface mountable panel shall accommodate from 4-48 zones per panel. Multiple panels may be used for larger facilities. Indicators shall be the specified colored LEDs. Separate green LED light shall indicate power. Power shall be 24 Volts VDC, regulated.
Technical Information:
- Power Requirements: 24VDC
- Operating Environment: 50-120°F Indoor Non-condensing
- Physical Dimensions: 8.75”H x 12.25”W x 1.5”D
- Mounting: Narrow depth surface mountable frame
- Wiring: Minimum 22 AWG
- To Power: Minimum 18 AWG
