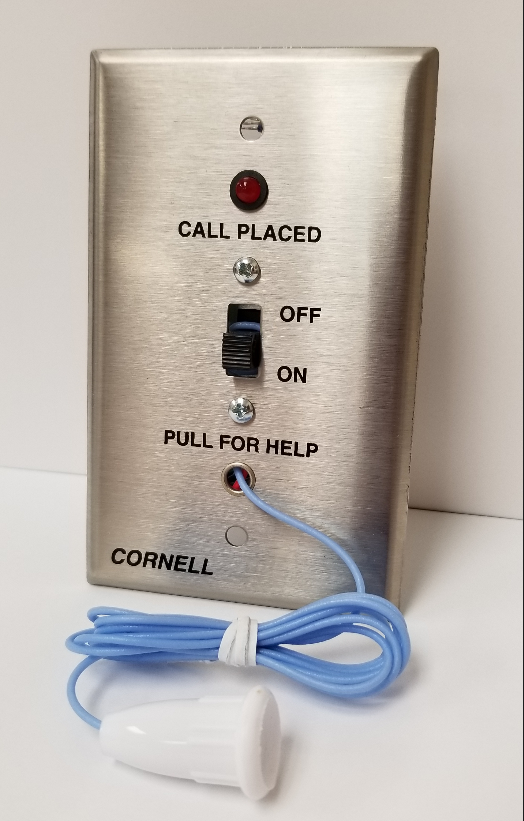

String Station, Anti-Microbial / Germ-Free and Glow-in-the-Dark, With On-Off Slide Switch, Call Placed Light for Dual Status
Download Brochure & Wiring Diagram
Get Help with System Design/Installation
Healthcare facilities like nursing homes, hospices, senior care communities and more will benefit from having the E-104-1 pull cord emergency call station installed in resident rooms. This system is easy to use for both residents and nurses, and patients are at ease when they need help because they know nurses are on the way. Cornell Communications has a large variety of top quality nurse call systems to help your healthcare facilities run smoothly.
The E-104-1 pull cord emergency call station will help any healthcare facility have a faster response time to emergencies.
Related Products:
Description:
Station features satin finished stainless steel faceplates with silk-screened designations. Station is applicable for single or dual applications.
Operation:
Pulling the four-foot germ-free, glow in the dark cord on the Emergency Station activates a call for help confirmed by a red LED. To cancel the call, slide the switch to the off position.
Mounting:
The satin finish stainless steel faceplate with silk-screened designation may be flush mounted on a standard outlet box with single-gang plaster ring, or surface mounted on a Wiremold 5748 or equivalent.
Engineering Specifications:
Faceplates shall be satin-finish stainless steel with silk-screened designations. Emergency station activates a call for help confirmed by red LED. Calls in progress can be cancelled by moving the switch to off position. Incandescent lamps are not acceptable.
Technical Information:
- Power Requirements: 24VDC
- Operating Environment: 50-120F Indoor non-condensing
- Mounting: single-gang back box with 1 3/4" minimum
- Physical Faceplate Dimensions :4 1/2"H x 2 3/4"W (1 gang)
- Wiring: 10 Wire color-coded pluggable harness
- Now supplied with a plastic, anti-microbial, glow in the dark 4 ft long cord
