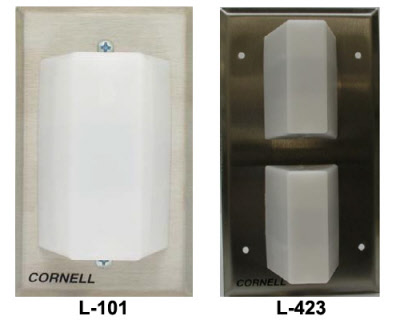

L-101, L-102, L-103, L-422, and L-423

Corridor Lights 1, 2, 3, 4, or 6 Lights

Product ID: L-101-L-102-L-103-L-422-L423
Product SKU: L-101-L-102-L-103-L-422-L423

System Quote

Nurse Call Light with 1 – 6 lamp options

High quality corridor lights are an important aspect of any emergency call system. These nurse call lights illuminate when an associated station is activated and will remain lit until the station is reset. Corridor nurse call lights are available with 1 to 6 lamps depending on your facility’s needs and preferences. Lights come with white or red dome colors, but a variety of color filters are available. Utilizing different colored options for certain situations and emergencies allows for efficient operation of your facility. The lights are equipped with removable dome covers for easy lamp replacement. With a wide range of lamp and color options, these nurse call lights provide effective call priority organization for your system.

*4-6 light configurations are required to be on at least a 4 gang plate

Select Lamp Options:

L-101 Part



L-102 Part



L-103 Part



L-422 Part



L-423 Part

Description:

Available with one, two, three, four, or six lamps and a full range of optional silk-screened designations. CORNELL Corridor Lights feature translucent wedge-shaped covers in red or white.

Operation:

The Light will illuminate when associated station is activated.

Maintenance:

Dome covers are easily removed from the front, for simplified lamp replacement.

Options:

Corridor lights can be made in 1-6 light configurations with white or red domes. Lights can be made red, blue, amber, yellow, or green with additional filters. Domes can also be silkscreened.

Mounting:

L-101, L-102, and L-103 models mount on standard, single-gang boxes or plaster rings, with a required depth of 1 inch. L-422 and L-423 models mount on a standard 4-gang box or plaster rings with a minimum of 1” depth.

Engineering Specifications:

The contractor shall furnish and install the CORNELL Series 4000 Corridor Lights with one (L-101), two (L-102), three (L-103), four (L-422) or six (L-423) lamps. The domes shall be (red) or (white), with optional designations silk-screened on the surface. The stainless steel faceplates shall mount on a standard, single-gang electrical wall box or single-gang plaster ring, with external connection achieved via pigtails. The dome covers shall be removable from the front for easy replacement of the lamps.

  • Power Requirements: 24VDC
  • Operating Environment: 50-120°F Indoor Non-condensing
  • Physical Faceplate Dimensions: 4 ½ ”H x 2 ¾ ”W (1 Gang)
  • Mounting: Single-Gang back box with 1” minimum depth
  • Wiring: #22 AWG Minimum
Contact the nurse call system manufacturers at Cornell Communications for more information about our superior emergency call systems.

visualNurse/L-101gangbox.jpg

visualNurse/L-101schematic.jpg
