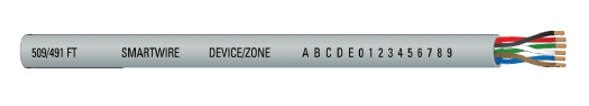

CB-4005, 6 Conductor / 18 Gauge Cable, Gray
Cable for 4000 Visual Nurse Call Systems CB-4005
Cornell’s SmartWire™ Cable is one of the select cables available for wiring the Cornell 4000 Visual Nurse Call System.
NEC Article 800, 760; UL Listed C(UL)US CMR OR FPLR (UL), RoHS Compliant
- Description: 18 AWG 6 Conductor Bare Copper, Non-Shielded Non-Plenum, UL Listed C (UL) US CMR OR FPLR (UL)
- Conductor Description: 18 AWG (7/26 Bare Copper)
- Insulation: PVC .008
- Color Code: Black/White/Red/Green/Brown/Blue
- Shield: N/A
- Drain Wire: N/A
- Jacket: PVC .018"
- Jacket Color: Gray Jacket
- Marking: SMARTWIRE DEVICE / ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 18 AWG C(UL)US CMR OR FPLR (UL) 75C ROHS MADE IN THE USA
- Overall Diameter: .208" Nom.
- Cable Weight: 45 Lbs/Mft.
- Capacitance: 27 pF/Ft. Nom.
- Impedance: 70 Ohms/Mft.
- Temperature and Voltage Rating: 0C to 75C/ 300 Volt
- Length: 1,000 ft. +/-5%
- Made in the USA, 427400
