Cable for Area of Rescue System

CB-4802 Cables for Rescue Assistance, Cat5e, Blue

Product ID: CB-4802
Product SKU: CB-4802
$245.00 $208.25/each (Online Price)
Quantity:

Get Help with System Design/Installation

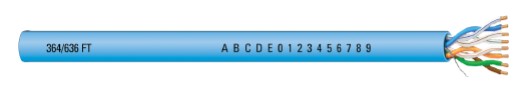

Cable for 4800 Rescue Assistance Systems CB-4802

Cornell’s SmartWire™ Cable is one of the select cables available for wiring the Cornell 4800 Rescue Assistance System.

Agencies Approvals

Type CMG/CMR Communication Cable, C(ETL), ETL Verified to TIA/EIA 568B.2

Technical Information:

  • Description: 24 AWG Category 5e Unshielded Twisted Pair (UTP) Cable for Data Transmission up to 350MHz. This Cable is Non-Plenum Rated and Verified to Category 5e Electricals.
  • Conductor Description: 24 AWG Solid Bare Copper
  • Insulation: PE
  • Color Code: Pair 1: White-Blue/Blue, Pair 2: White-Orange/Orange, Pair 3: White-Green/Green, Pair 4:White-Brown/Brown
  • Shield: N/A
  • Drain Wire: N/A
  • Jacket: PVC; OD: .205” Nom
  • Jacket Color: Blue Jacket
  • Marking: A B C D E 0 1 2 3 4 5 6 7 8 9 4PR CAT 5E ENHANCED (ETL) OR C(ETL) 24 AWG 350 MHZ CMR VERIFIED TO TIA/EIA 568B.2
  • Overall Diameter: .205" Nom.
  • Cable Weight: 25 Lbs/Mft.
  • Capacitance: 17 pF/Ft.
  • Impedance: 100 Ohms +- 15%
  • DC Resistance: 9.38 Ohms/100m (28.6 Ohms/kft) Max
  • Temperature and Voltage Rating: -20C to +60C / 300 Volt
  • Length: 1,000 ft. +/-5%
  • Made in the USA, 8665619
