CB-4804, SmartWire Cable for Rescue Assistance
Cable for 4800 Rescue Assistance Systems CB-4804
Cornell’s SmartWire™ Cable is one of the select cables available for wiring the Cornell 4800 Rescue Assistance System.
NEC Article 800, 760; UL Listed C(UL)US CMR OR FPLR (UL), RoHS Compliant
- Description: 16 AWG 2 Conductor Bare Copper, Non-Shielded Non-Plenum, UL Listed C (UL) US CMR OR FPLR (UL)
- Conductor Description: 16 AWG (19/29 Bare Copper)
- Insulation: PVC .008”
- Color Code: Black/White
- Shield: N/A
- Drain Wire: N/A
- Jacket: PVC .018"
- Jacket Color: Gray Jacket

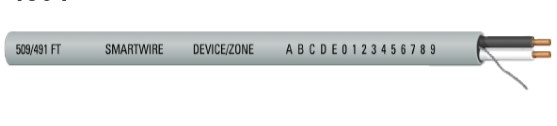

- Marking: SMARTWIRE DEVICE / ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 16 AWG C(UL)US CMR OR FPLR (UL) 75C ROHS MADE IN THE USA
- Overall Diameter: .184" Nom.
- Cable Weight: 25 Lbs/Mft.
- Capacitance: 34 pF/Ft. Nom.
- Impedance: 55 Ohms/Mft.
- Temperature and Voltage Rating: 0C to 75C/ 300 Volt
- Length: 1,000 ft. +/-5%
- Made in the USA, 428100
